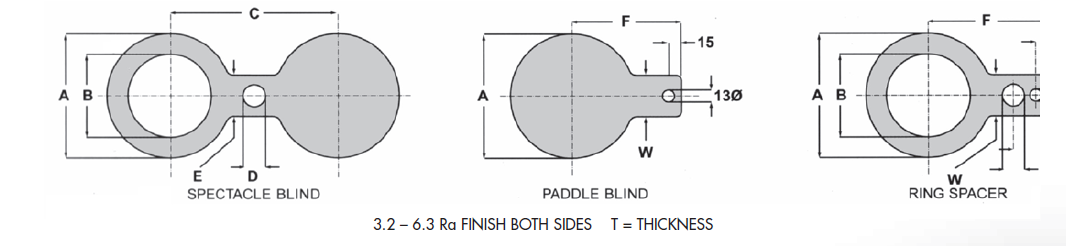

Spectacle & Paddle Blinds and Ring Spacers – Dimensions

Specification: ANSI B16.48

*NOTE:

(1) Dimensions based on sizes designed to suit ANSI B16.5 Flanges.
(2) All dimensions are in mm

NOMINAL BOREANSI 150ANSI 300
mmABCDEWFTABCDEWFT
2564.0278015.83838145.03.070279019.03838150.06.4
4083.04810015.83838155.06.4924811522.23838170.06.4
50102.06112019.05151165.06.41086112519.05151173.09.7
80133.08915019.06464175.06.41468917022.26464195.09.7
100172.011419019.06464205.09.717811420022.26464215.012.7
150219.016824022.27676230.012.724816827022.27676250.015.7
200276.021930022.27676260.012.730521933025.47676280.022.4
250337.027336025.4102102295.015.735927338528.5102102312.025.4
300406.032443025.4102102330.019.141932445031.7102102350.028.4
350448.035647528.5108108360.019.148335651531.7108108383.031.8
400511.040654028.5108108390.022.453640657034.9108108415.031.8
450546.045758031.7114114410.025.459445763034.9114114445.041.1
500603.050863531.7121121440.028.465150868534.9121121447.044.5
600714.061075034.9140140500.031.877261081041.2140140547.050.8
NOMINAL BOREANSI 600ANSI 900
mmABCDEWFTABCDEWFT
2570279019.05757150.06.4762710025.45757164.06.4
40924311522.26767170.09.7954312528.56767179.09.7
501085512519.05757173.09.71405516525.45757198.012.7
801468317022.26767195.012.71658319025.46767210.015.7
10019110821525.47676225.015.720310823531.77676235.019.1
15026416229028.58686267.022.428616232031.78686280.025.4
20031821235031.79595300.028.435621239538.19595325.035.1
25039726543034.9105105345.035.143226547038.1105105363.041.1
30045431549034.97105105370.041.149531553538.1105105395.047.8
35048934652538.1114114393.044.551834656041.2114114410.053.8
40056239760541.2124124432.050.857239761544.4124124443.060.5
45061044865544.4133133463.053.863544868550.8133133485.066.5
50067949772544.4133133500.063.569649775053.9133133520.073.2
60078759784050.8152152560.073.283559790066.6152152615.088.9
